Image Description, by

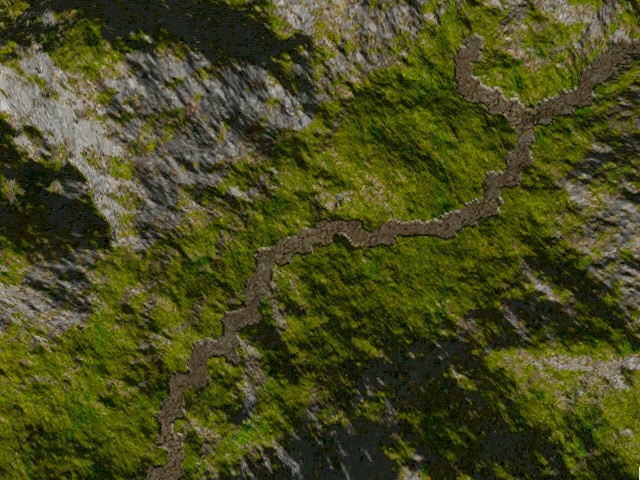

In previous IOTDs, many people asked what algorithm Terragen is using to calculate its textures. Since i didn't dare to post YALS (Yet Another Landscape Screenshot), i prefered to send this one (which is a top view of my terrain) with a short description of how i'm texturing it (i don't know if Terragen does the same thing, but the results look quite similar).

First, before you ask:

1. It is realtime rendered, and actually quite fast (there is around 8000 triangles in this frame). I expect 150 fps on a P2-400+GeForce. Brute-force method: no LOD (yet).

2. It is not using a Terragen's texture. Terrain textures are completely procedurally generated.

3. No demo yet, but i'm working on one. Still needs a few weeks of work.

Now, some words about the technic:

I'm using a set of 3 parameters: elevation, slope and exposition/ orientation for each texel. Designers can use a script language to describe how to texture-map the terrain. It is done, as Terragen, with materials layers. To each layer is associated a texture map (grass, rock, mud), some conditions about the elevation, slope and exposition, and for each parameter, a min/max blending coefficient too.

The influence (ranging from 0.0 to 1.0) of a given layer is calculated, for a texel, by interpolating the 3 blending coefficients. Then, we get the final color of the texel with a standard n-blending function.

It is also possible to specify specific texture maps for some texels, as shown with the muddy road in the shot.

A simple script example would be:


Grass {
        Slope {
                angle_min:0             # min angle condition (degrees)
                angle_max:31            # max angle condition (degrees)
                blend_min:0.9           # blending for min angle
                blend_max:1.0           # blending for max angle
        }
}

Sand {
        Slope {
                angle_min:31            # min angle condition (degrees)
                angle_max:90            # max angle condition (degrees)
                blend_min:0.8           # blending for min angle
                blend_max:1.0           # blending for max angle
        }

        Elevation {
                height_min:0.0          # min height (in meters)
                height_max:10.0         # max height (in meters)
                blend_min:1.0           # elevation blending is identiy
                blend_max:1.0
        }
}

Rock {
        Slope {
                angle_min:31            # note that these are the same
                angle_max:90            # parameters than for sand. Only
                blend_min:0.8           # the elevation condition
                blend_max:1.0           # changes.
        }

        Elevation {
                height_min:10.0         # min height (in meters)
                height_max:10.0+        # max height: above 10 meters
                blend_min:1.0           # elevation blending is identiy
                blend_max:1.0           # too
        }
}

I let you, as an exercise, imagine what sort of terrain this would result in :)
