Sky Domes
by (20 September 1999)



Return to The Archives
Introduction


Lately it seems that eye candy is becoming more important than game substance. One of the reasons I hear that EverQuest is so much better than Ultima Online is because the graphics are so much better. Personally, I am an avid fan of both games.

I have spent many hours looking around EverQuest trying to find these gorgeous graphics that everyone talks about. All I have seen are poorly aligned textures and level building that would get most Quake map makers laughed off a review board. After all is said and done, about the only thing that I have seen in EverQuest’s graphics is the nice sky dome.

One of the nice things about sky domes is that with a little work, impressive results can be obtained.


Elements of the Sky Dome Not Documented


To reduce the size of the source code in this tutorial, it is assumed that you have access to some existing classes that provide basic functions.
  • CMatrix - 4 x 4 matrix
  • CVector# - 2, 3, and 4 part floating point vector
  • CDoubleLink - Self referencing double link list
  • In my world, the normal vector (0, 0, 1) points up. Elements such as texture management are not covered.


    The Source Files


    Contained within this document is very little information about the actual implementation of sky domes since the concepts are simple and fully documented in the source code. Source code comments, what an earth shattering idea. Contained within the source zip file, article_skydomes.zip, you will find the following files;
  • Skydome.cpp and skydome.h - Support for the sky dome
  • Skyclouds.cpp and skyclouds.h - Support for clouds and star fields
  • Skybodys.cpp and skybodys.h - Support for suns, moons, and the flares around them
  • OGLRenderer.cpp - Extracted source from my renderer that renders the dome
  • ViewerView.cpp - Extracted source that contains sample initializations of the dome, clouds, and bodies.
  • Most of the code is well documented and will provide more information about how specific things are done. In this document, there will just be an overview about each element of the sky dome. IN NO WAY is this code intended to be able to be included in your project and compiled without modification.


    The Sky Dome

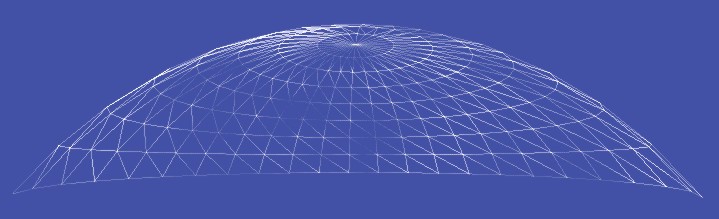

    A sky dome is a top part of a sphere with the player usually located inside the dome seeing the inside wall of the dome. Against the dome is drawn the environment. The following image is a picture of a sky dome drawn as lines viewed from the outside.



    As you can see, the sky dome is broken into a series of triangles that reasonably approximate the shape of the sphere.

    When the sky dome is created, all that needs to be stored is the vertices. If all vertices are stored in a single array starting with the top of the dome and working down through the rings, the dome can easily be rendered using a triangle fan and a series of triangle strips.


    Texture Mapping a Cloud Texture


    Clouds are drawn onto the dome by blending a luminosity texture with the required texture color. A simple method of generating the texture coordinates is to use some function of the x and y coordinates of the sky dome to generate the s and t coordinates for the texture. To get a clouds texture to map over the sky dome without any repeating, x and y should be divided by the width of the sky dome base.

    Note: As the size of the dome is increased and it becomes more of a hemisphere, the texture mapping at the edges breaks down. One solution to this problem could be using some form of exponential curve to increase the textures ds and dt in triangles close to the edge of the dome.


    The Sun and the Moon


    Paul Schlyter of Stockholm Sweden has published on a web site some great information on how to roughly compute the proper position of celestial bodies from the orbital information. Even though the equations he uses are significantly simplified, they work far beyond the requirements for most games. (EverQuest players need to take a look at the sun and moon in EverQuest and figure out what is physically impossible about how there sun and moon rises and sets.)

    Once the current game time is computed for the frame being rendered, these equations can be used to compute the position and size of all bodies. Of special importance is the sun, whose position is used to compute color information for the day and night.


    Day, Night, Sunset, and Sunrise Colors


    As currently coded, the sky dome only includes a basic system of computing the colors the clouds and bodies in the dome. It is based on a user-supplied color for day and night. The sun is always in one of four states, day, night, sunset, or sunrise. If the sun is in the day or night state, either the day or night color will be used directly. If the sun is in sunrise or sunset, a color will be interpolated based on how far into the transition state the sun might be in.

    One improvement that needs to be made to the code is the addition of sunrise and sunset colors, such as the red hues we see during a sunset.


    Rendering the Sky Dome


    Rendering the dome is done in a series of steps:
  • Positions of all the sky bodies and clouds are computed.
  • From the position of the sun, all the colors for the bodies, clouds, and frame buffer are computed
  • Frame buffer is cleared with the computed sky color
  • Z buffer writes are disabled
  • Render all sky clouds that are marked as being a star layer (a simple texture with dots for stars)
  • Render all sky bodies
  • Render all sky clouds that are clouds and not stars
  • Cloud layers are blended onto the frame buffer.

    In the case of sky bodies such as the sun, they are not blended, but required an alpha component so the texture does not overdraw elements of the dome that are not part of the actual sun.

    The moon has to be rendered in 2 passes. First, from the moon texture, which also has an alpha component, a mask is generated that has alpha values of 1.0 for texels inside the moon and alpha values of 0.0 for texels outside the moon. This mask is rendered onto the dome without blending using the current sky color. This is done to remove any stars that might appear behind the moon. Next, the actual moon texture is blended onto the sky dome. The reason it is blended is because during the day, the moon will show a bit of blue or red hue of the sky.

    Although not a real sky body, the code supports drawing of flares around the sun. These are done by creating duplicate sky body like the sun, but using a flare texture instead of the sun texture. Flares are blended onto the sky dome.


    Links


    How to Compute Planetary Positions: http://hotel04.ausys.se/pausch/comp/ppcomp.html
    Solar Systems Data: http://seds.lpl.arizona.edu/nineplanets/nineplanets/data.html
