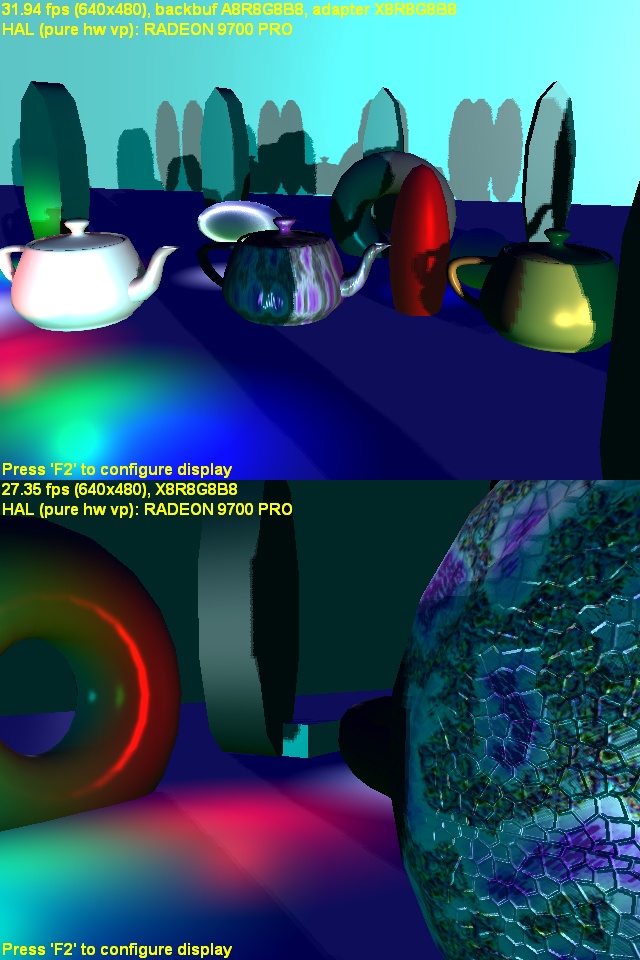

This is a demo of my research into deferred lighting, using pixel shader 2 and high precision render targets, all lighting is done as a post process to the geometry rendering. An article is also provided describing the maths and techniques that are used by the demo.

The article and source code is at

This demo has 18 lights, a hemisphere, 2 directionals (with shadow maps) and 15 point lights. All affect all surfaces equally, all surfaces can have diffuse, specular and bump maps effectively for free (the cost to use a bump-map over not using one, is simple a texture lookup once in the geometry phase). Cost per light is totally seperate from polygon count, each light is simple the cost of running the pixel shader at each pixel it covers. Per polygon cost is the cost of setting up the G-Buffer only, for cards with 4 channel 16 bit integers and multiple render-targets this is a single pass.

It also uses hardware z-reject for lights, which skips the pixel shader if the result would not be visible. The has an interesting property, where dense geometry can speed up the lighting. The shadow maps are also very cheap, apart from the cost of generating the depth map, it only costs around 10 pixel shader instructions in the light shader. This is independent of the number of surfaces/objects receiving the shadow, giving a lights shadow cost of 1 simple vertex and pixel program per triangle (to generate the depth map) and a few pixel shader instructions per screen pixel covered.

As each light is an actual geometric entity with size, shape and its own shader that has full access to the view (depth and G-buffers), there is a lot of potential for future expansion (atmoshperic scattering, translucent objects etc).

Full source code including HLSL is provided.
