Submitted by , posted on 27 March 2002



Image Description, by


Nothing original but it's probably more interesting than my landscape engine...

All I did was take the code Jos Stam kindly released:
http://www.acm.org/jgt/papers/Stam01/solver.html

...implemented his advecting textures idea:
http://www.dgp.toronto.edu/people/stam/reality/Research/pdf/ns.pdf

...and added vorticity confinement:
http://graphics.stanford.edu/papers/smoke/smoke.pdf

...to get this:
http://matrix.netsoc.tcd.ie/~the_one/iotd.exe

It's tweaked for my PIII-700 where I get 50 FPS. It could probably be made many times faster however by optimizing specifically for power-of-2 grid sizes (especially the FFT computation). Right mouse click pops up a menu.

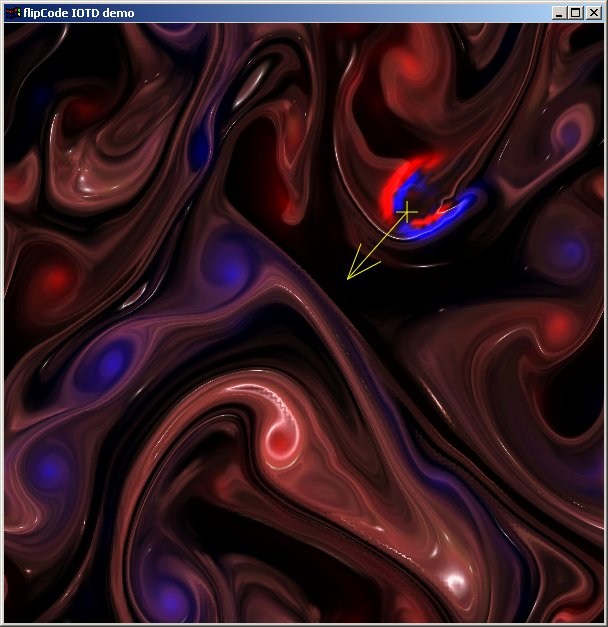

The particular screen-shot above shows a swirling texture with vorticity visualization enabled, where vorticity is simply the curl of the velocity field. Clockwise circulation is represented by red and counterclockwise by blue. This was made on a 100x100 grid with a 512x512 texture, although the demo uses a hard-coded 64x64 grid with very low resolution textures. A couple of even higher quality screen-shots can be found here:
http://matrix.netsoc.tcd.ie/~the_one/wallpaper_scifi.jpg and here:
http://matrix.netsoc.tcd.ie/~the_one/wallpaper_paint.jpg

If anyone has any questions to post, I'll be happy to answer them...
